The 1-Click Onboarding SDK simplifies user verification workflows for Android, iOS, and web applications. You can include a script tag, initialise the SDK with a session ID, and manage verification processes easily. Success and error callbacks handle responses, and you can close the SDK programmatically if needed. This topic includes the following sections:

​
Integration

To integrate 1-Click Onboarding:
  1. Log in to the Merchant Dashboard and create a 1-Click Onboarding template.
  2. Follow the workflow below:
    1. Verify user data using the Data Availability API to check user data availability using a mobile number. This step is mandatory.
    2. Initiate OAuth by calling the Initiate OAuth API with the mobile number to obtain a session_id for opening the SDK.
    3. Collect user consent by opening the SDK using the session_id. Once the user provides consent, a callback returns an auth_code.
    4. Generate an access token using the auth_code with the OAuth Access Token Generation API to get a token valid for one hour.
    5. Retrieve user details using the access token with the Fetch User Details API to access user details.

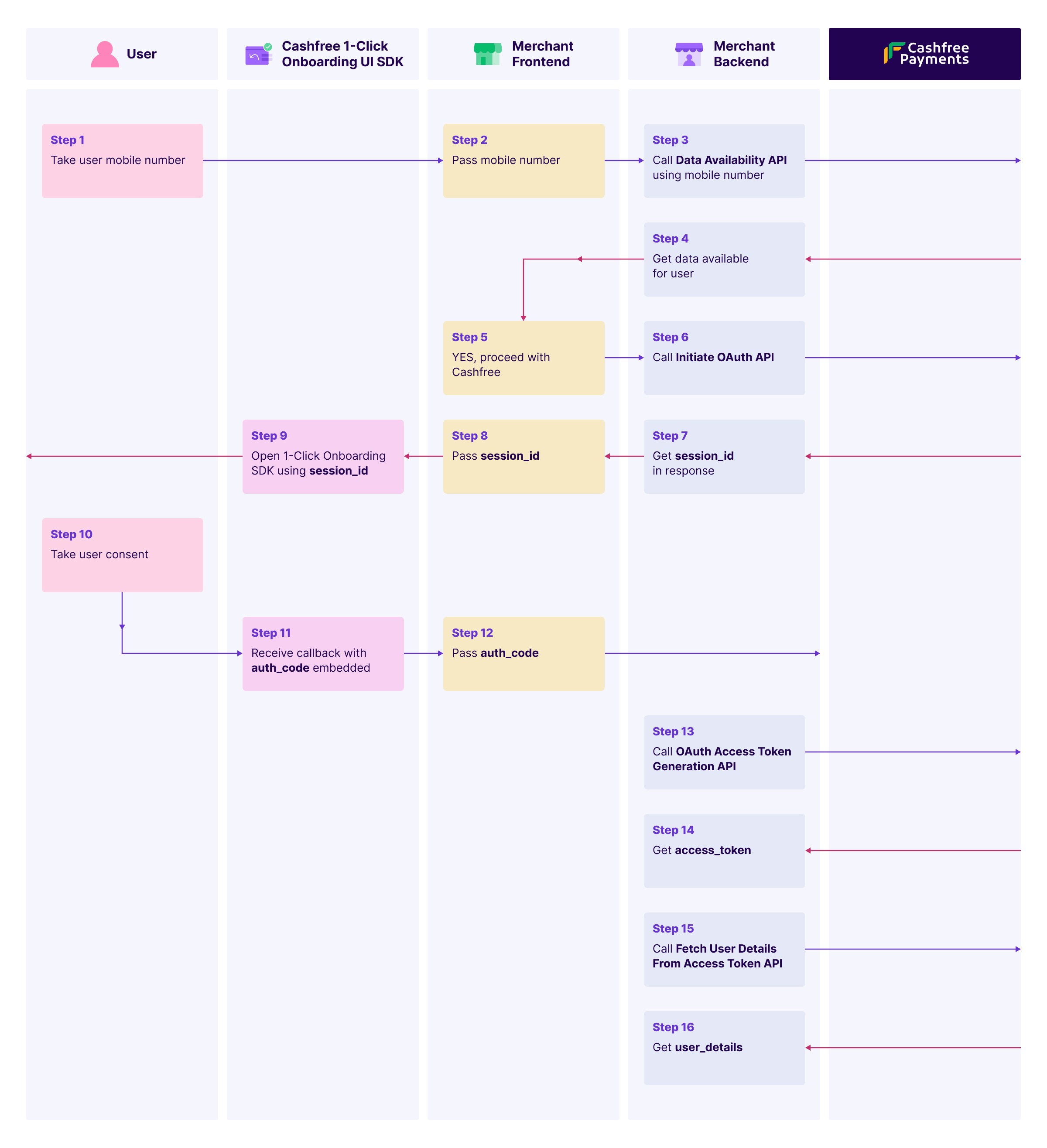

Refer to the image below for a sample workflow:

​
Initializing SDKs

The SDK communicates with Cashfree and provides updates via the callbacks. Initialize the applicable SDK from the options below:

​
Web

To initiate the web SDK, pass the sessionId and callback functions. Refer to the JavaScript example below:
const cf = CF1ClickOnboarding({
  sessionId: newId,
  successCb: successCallback,
  errorCb: errorCallback,
  mode: "production" // default: "sandbox"
});

const successCallback = (data) => {
  console.log("Success: ", data);
};

const errorCallback = (error) => {
  console.error("Error: ", error);
};

// Close the SDK programmatically
cf.closeSDK();

​
Importing hosted JS SDK

Include the following SDK in your HTML document for the production environment:
<script src="https://vssdk-prod.cashfree.com/vsvault/prod/1.0.0/index.js"></script>
Note: To use the test environment, set mode="sandbox" in the CF1ClickOnboarding SDK. This is the default mode. To use the production environment, set mode="production".
Refer to the code snippet below for the HTML structure:
<html>
  <head>
    <title>1-Click Onboarding</title>
    <script src="https://vssdk-prod.cashfree.com/vsvault/prod/1.0.0/index.js"></script>
  </head>
  <body>
    <div id="cf-sdk"></div>
  </body>
</html>

​
Android native

To set up the Android native SDK:
  1. Add the Maven repository to settings.gradle.kts:
    repositories {
    google()
    mavenCentral()
    maven { url = URI("https://maven.cashfree.com/release") }
}
  2. Add SDK dependency in build.gradle.kts:
    dependencies {
    implementation("com.cashfree.vrs:kyc-verification:1.0.1")
}
  3. Click Sync Now in Android Studio to sync the project.
To initialise and use the Android native SDK:
  1. Create an instance of the verification service:
    val verificationService = CFVerificationService.Builder()
    .setContext(this) // Pass the context
    .build()
  2. Configure the callback to handle verification responses, errors, and user drop scenarios:
    verificationService.set1ClickOnboardingCallback(object : CF1ClickOnboardingCallback {
    override fun onVerification(response: CF1ClickOnboardingResponse) {
        // Handle response
    }

    override fun onVerificationError(error: CF1ClickOnboardingErrorResponse) {
        // Handle error
    }

    override fun onUserDrop(error: CFUserDropResponse) {
        // Handle user drop
    }
})
  3. Initiate the 1-Click Onboarding SDK:
    verificationService.open1ClickOnboarding(sessionId, Environment.TEST)
It consists of the following parameters:
  • sessionId: Unique session identifier.
  • Environment: SDK environment. Possible values are:
    • Environment.TEST
    • Environment.PROD

​
iOS native

To set up the iOS native SDK:
  1. Add the SDK to your project by updating your Podfile:
    pod 'KycVerificationSdk', '~> 1.0.2'
  2. Run pod install to install the SDK.
To initialise and use the iOS native SDK:
  1. Create an instance of the CFVerificationService class:
    let kycService = CFVerificationService.getInstance()
  2. Set up callback handlers to manage events after verification processing. Implement the CF1ClickOnboardingResponseDelegate protocol to handle responses and errors:
    extension ViewController: CFResponseDelegate {
    func onVerification(_ verificationResponse: KycVerificationSdk.CF1ClickOnboardingResponse) {
        showErrorAlert(title: "Verification Success", message: verificationResponse.verificationId ?? "N/A")
    }

    func onVerificationError(_ errorResponse: KycVerificationSdk.CF1ClickOnboardingErrorResponse) {
        showErrorAlert(title: "Verification Error", message: errorResponse.status ?? "N/A")
    }

    func onUserDrop(_ userDropResponse: KycVerificationSdk.CFUserDropResponse) {
        showErrorAlert(title: "User Dropped", message: userDropResponse.verificationId ?? "N/A")
    }
}
  3. Initiate the 1-Click Onboarding SDK using the following code:
    do {
    let environment = Environment.PROD
    try kycService.open1ClickOnboarding(sessionId, environment, self, self)
} catch let e {
    let error = e as! VerificationError
    print(error)
}
It consists of the following parameters:
  • sessionId: A unique identifier for the session.
  • environment: Specifies the environment in which the SDK operates. Possible values are:
    • Environment.TEST
    • Environment.PROD

​
Callback structure

Refer to the sample response below:
{
  "verification_id": "verification_id_value",
  "auth_code": "auth_code_value",
  "status": "SUCCESS"
}
Refer to the table below for the possible statuses:
StatusDescription
SESSION_EXPIREDThe session ID is invalid.
SESSION_ID_MISSINGNo session ID is provided during initialization.
DIV_MISSINGThe <div> with ID cf-sdk is missing.
SUCCESSThe operation is completed successfully.
CLOSEDThe SDK closes.
Notes:
  • Ensure the <div> with ID cf-sdk exists in your HTML.
  • The SDK applies default styling for consistent behaviour; custom styling is not supported.
  • The iframe uses sandboxing for secure interactions.
For detailed API documentation, refer to 1-Click Onboarding API Integration.
